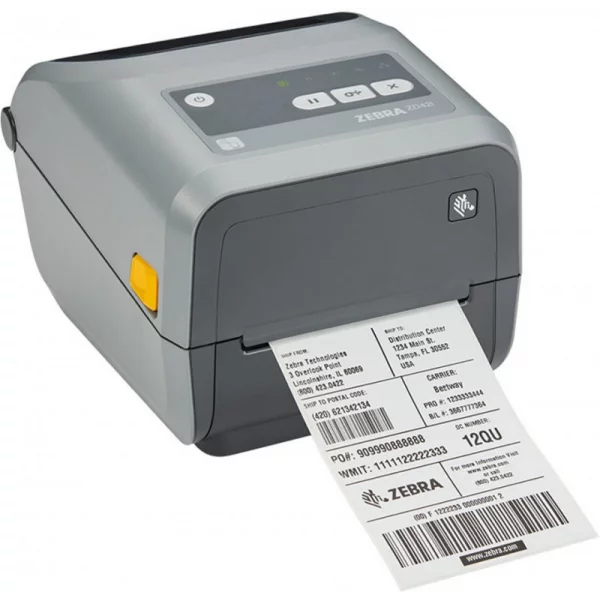

Zebra ZD421 300dpi Desktop Barcode Printer

Full Specification Item Barcode Printer Model ✅ Zebra ZD421 Print Technology Thermal Transfer, Direct Thermal Resolution 300dpi Speed 152 mm per second Inks Black Colors Black Label Size 4 Connectivity USB 2.0, USB Host Standard Features Print methods: Thermal Transfer or Direct Thermal Programming languages: ZPL and EPL User Interface: 5 status icons, 3 button UI Real-Time Clock: Yes PDF Direct: Yes Energy Star Certified: Yes Media Loading: Open ACCESS for easy media loading Frame Construction: Dual-wall frame construction Label Design Tool: Zebra Designer Essentials Mobile App: Printer setup mobile app for Android and iOS via BLE Printer Specifications Operating…

Category: Barcode Label Printer, Hot Deal, Printer

Brands: Zebra

Description
Reviews (0)

Description

Full Specification

Item	Barcode Printer
Model	✅ Zebra ZD421
Print Technology	Thermal Transfer, Direct Thermal
Resolution	300dpi
Speed	152 mm per second
Inks	Black
Colors	Black
Label Size	4
Connectivity	USB 2.0, USB Host

Standard Features
- Print methods: Thermal Transfer or Direct Thermal
- Programming languages: ZPL and EPL
- User Interface: 5 status icons, 3 button UI
- Real-Time Clock: Yes
- PDF Direct: Yes
- Energy Star Certified: Yes
- Media Loading: Open ACCESS for easy media loading
- Frame Construction: Dual-wall frame construction
- Label Design Tool: Zebra Designer Essentials
- Mobile App: Printer setup mobile app for Android and iOS via BLE
Printer Specifications
Operating System: Link-OS
Resolution
- 203 dpi/8 dots per mm
- 300 dpi/12 dots per mm (optional)
Memory
- 512 MB Flash
- 256MB SDRAM
- 64 MB user available non-volatile
- 8 MB user available SDRAM
Maximum Print Width
- 104 mm for 203 dpi
- 108 mm for 300 dpi
- Cartridge: 104 mm for 203 and 300 dpi
Maximum Print Speed
- 152 mm per second (203 dpi)
- 102 mm per second (300 dpi)
Media Sensors: Full-width, moveable reflective/black mark sensor
Multi-position transmissive/gap sensor
Firmware: ZPL II, EPL 2, XML, ZBI, PDF Direct
Media, Ribbon, and Cartridge
- Label Length
  - Maximum: 991 mm
  - Minimum: 6.4 mm
Media Width
- Direct Thermal: 15 mm to 108 mm
- Thermal Transfer Roll: 15 mm to 112 mm
- Thermal Transfer Cartridge: 15 mm to 118 mm
Media Roll Size
- Maximum outer diameter: 127 mm
- Core inner diameter: 12.7 mm and 1.0 25.4 mm
- Standard: 38.1mm, 50.8 mm and 3.0 76.2 mm using optional adapters
Media
- Thickness: 0.08 mm min., 0.19 mm max.
- Types: Roll-fed or fan-fold, die cut or continuous with or without black mark, tag stock, continuous receipt paper, and wristbands
Ribbon
- Ribbon Outside Diameter: 66 mm (300 m), 34 mm (74 m)
- Ribbon Standard Length Roll: 984 ft. (300 m); 243 ft. (74 m)
Cartridge: 243 ft. (74 m)
Ribbon Ratio
- 1:4 ribbon to media (300 m)
- 1:1 ribbon to media (74 m)
Ribbon Width
- Roll: 33.8 mm – 109.2 mm
- Cartridge: 109.2 mm
Ribbon Core I.D
- 300-meter ribbon: 25.4 mm
- 74-meter ribbon: 12.7 mm
Operating System
- Operating Temp.: 4.4° to 41° C
- Storage Temp. -40° to 60° C
- Operating Humidity: 10% to 90% non-condensing
- Storage Humidity: 5% to 95% non-condensing
- Electrical
  - Auto-detectable (PFC Compliant) 100-240V AC, 50-60Hz
  - Energy Star-certified
  - Energy Efficiency Level VI
  - 2750mAh battery
  - Healthcare models include IEC60601-1 certified power supply
Media Handling
- Dispenser / Peeler: label peel and present with label present sensor
- Cutter field installable
Communications
- Field installable: Ethernet 10/100, 802.11ac Wi-Fi and Bluetooth 4.1 (dual radio), Serial RS-232 auto-sensing, DB-9
- Factory installed: Ethernet 10/100, 802.11ac Wi-Fi and Bluetooth 4.1 (dual radio
Physical
- Dimensions
  - Direct Thermal: 8.69 x 6.98 x 5.93 inch
  - Thermal Transfer Roll: 10.5 x 8.0 x 7.44 inch
  - Weight Direct Thermal: 1.35 kg
  - Thermal Transfer Roll: 2.05 kg
  - Thermal Transfer Cartridge: 2.3 kg

Description

This Zebra ZD421 is a desktop barcode printer that contains thermal transfer and direct thermal printing technology. The labels on this printer are razor-sharp and crystal clear, perfect for high-resolution art. Moreover, it supports versatile printing such as thermal transfer and direct thermal printing methods and uses a 3-button interface and 5-status icon interface. It has a built-in real-time clock that accurately timestamps labels. This Zebra ZD421 printer uses Bluetooth Low Energy 5 connectivity to set up the printer with a mobile app for Android and iOS.
