Description

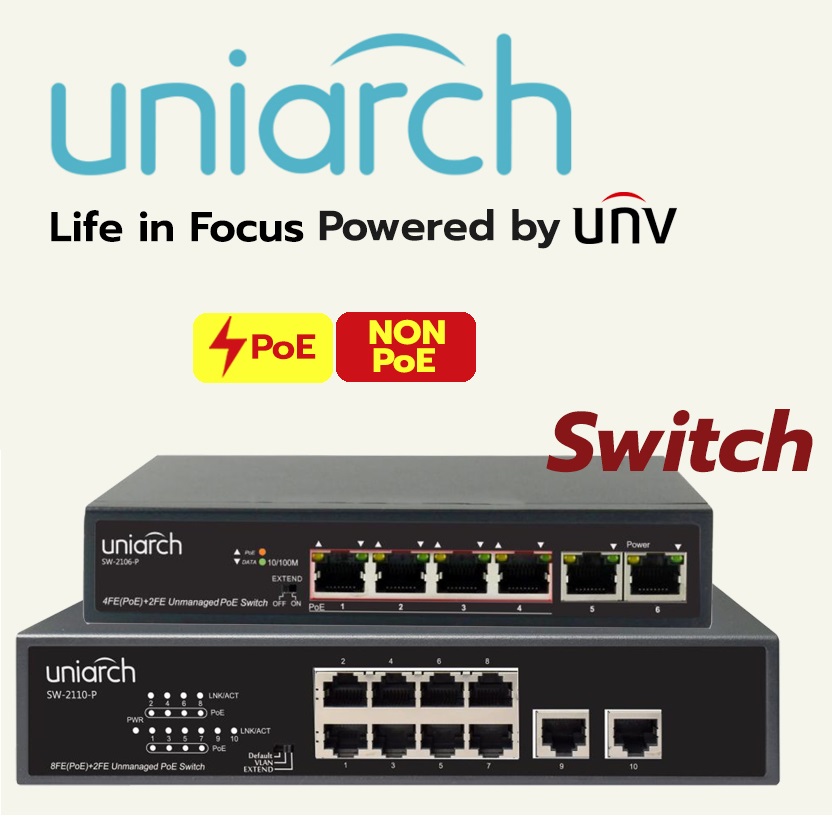

PoE Switch UNIARCH SW-2106-P
Model-SW-2106-P
4-Port PoE Switch
* Ports 6×100Mbps network ports (RJ45),including 4PoE ports
* Switching capacity 1.2Gbps
* Support port traffic controlUp to 250m transmission distance on surveillance mode Support buffer optimization
*All metal housing, safe and reliable
* Max. PoE PowerMax capacity: 65W
* Max capacity for single port: 30W
Specification
| Model | Description |
| Ports | 6×100Mbps network ports (RJ45), including 4 PoE ports |
| Standards | IEEE802.3,IEEE802.3u,IEEE802.3az,IEEE802.3x,IEEE802.3af,IEEE802.3at |
| Switching capacity | 1.2Gbps |
| Forwarding performance | 0.90Mpps |
| Packet Buffer | 768Kbit |
| MAC | 2K |
| Dimensions (W×D×H) | 160mm x 93mm x 32mm(6.3″×3.7″×1.3″) |
| Weight | <0.6kg |
| Power supply | AC: 100-240V, 50/60Hz |
| PoE | 802.3at/af |
| Max. PoE Power | Max capacity: 65W
Max capacity for single port: 30W |
| Cooling Fans | 0 |
| Mean Time Between Failure(MTBF) | >50000 hours |
| Operating temperature | 0°C-40°C (32°F-104°F) |
| Operating humidity | 10%～90% (noncondensing) |
| Storage humidity | 5%～90% (noncondensing) |
| Indicator | PWR:
Steady on: AC input is normal Off: No AC input |
| PoE:
Off: No PoE power supply Steady on: PoE power supply is normal Flashing: PoE power supply is abnormal |
|
| LINK/ACT:
Off: No link Steady: Linked at 10/100Mbps Flashing: Transmitting data |
|
| Speed:
Off: Linked at 10/100Mbps On: Linked at 1000Mbps |
|
| Working Mode | Default(Normal mode) : All ports can communicate with each other.
EXTEND(Surveillance mode): Transmission distance up to 250 meters. |
