Description

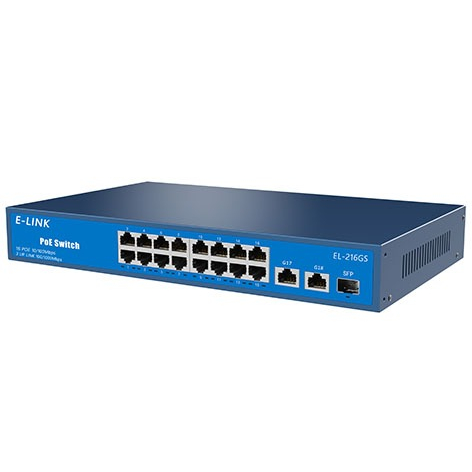

E-LINK EL-216GS 16POE+2FE POE Switch

Description

Networking PoE Switch

Application:

Wireless Access Point

IP IP Camera

IP Phone

Computer Networks

Specifications:

Product: 16 Port Networking POE Switch

Model: EL-216GS

POE Port: 1 to 16 support IEEE802.3AF/AT Standard

Output Power: 15.4W/30w : IEEE802.3af/at

Power Pin: Both 1/2+ 3/6- and 4/5+7/8-

Whole Power: s120W (52V 2.3A)

POE Protocol: IEEE 802.3af/IEEE 802.3at

POE Type: End-span

Power Distance: <250m

Network Standard: IEEE 802.3, IEEE802.3u, 802.3x, 802.3af/at

Network Medium: 100/1000BASE-TX:5 class and above non shielded twisted pair

Data Distance: <250m

Switch Capability: 10Gbps

Forwarding Mode: Store and forward

Forwarding Rate: 100BASE-tx: 14800pps/port

MAC Address: MAC address table 2K.

Port Function: Power priority mechanism, fast and forward, MAC automatic learning and aging

EEEBO2.3X Full-duplex and mode and backpressure for Half-duplex mode .

LED Indicator: Each port occupied 1 LINK/ACT.1000Mbps,

POE Status Indicator, Whole power indicator.

Working Environment: Working temperature: -10-55 C

Weight: 1kg

Size: 200x145x44(L*W*H}mm

1 Year Warranty

Made in China
